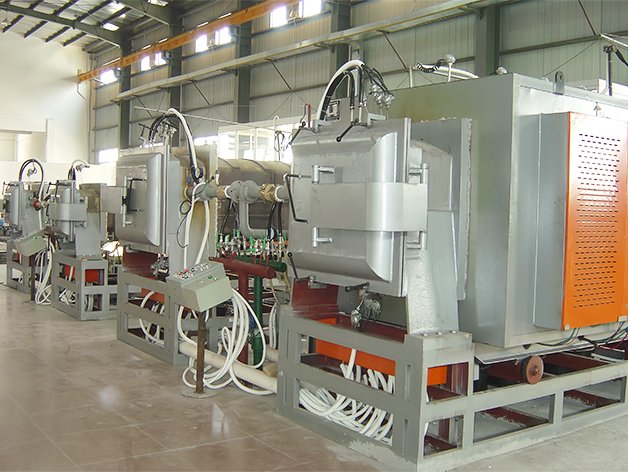

SAV-72 Vacuum Annealing Furnace
SAV-72 vacuum annealing furnace is designed for vacuum annealing process, which is mainly used for heat treatment of amorphous cores, nanocrystalline core and CRGO silicon cores etc.The purpose of heat treatment is to release internal stress, optimize the permeability and reduce iron losses.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
SAV-72 vacuum annealing furnace is designed for vacuum annealing process, which is mainly used for heat treatment of amorphous cores, nanocrystalline core and CRGO silicon cores etc.The purpose of heat treatment is to release internal stress, optimize the permeability and reduce iron losses. This vacuum annealing furnace mainly consists of vacuum furnace, heating system, vacuum pump system, water cooling system, electrical control system, etc.
Main Features:
- This heat treatment furnace is a horizontal furnace that is equipped with front-load trolley, convenient for loading and unloading.
- Heating elements withhigh quality and long service life. This vacuum annealing furnace has the advantages of uniform heating temperature, fast temperature rise and high heating efficiency.
- Blower fan is designed inside the furnace to increase temperature uniformity, cut down processing time and increase productivity.
- Vacuum annealing furnace is equipped with PID temperature control units to accurately control the temperature.
- The annealing progress of this heat treatment furnace is controlled by PLC, with the cycle curve and process data can be displayed and saved.
Technical Parameters:
| Model | Power Supply | Rated Power | Rated Temperature |
Chamber Dimensions |
Material Rack
Dimensions |
Capacity |
| SAV-45 | 380VAC,50/60Hz or Optional | 45kw | 650℃ | Ø400×2200mm | 300×1260mm(3 Layers) | 60kg |
|
SAV-72 |
72kw | 2200×600×350mm | 1260×550mm(4 Layers) | 100kg | ||
| 2200×700×350mm | 1260×650mm(4 Layers) | 120kg | ||||
| 2200×800×350mm | 1260×750mm(4 Layers) | 150kg |
