SAW150-50 Nanocrystalline Core Winding Machine

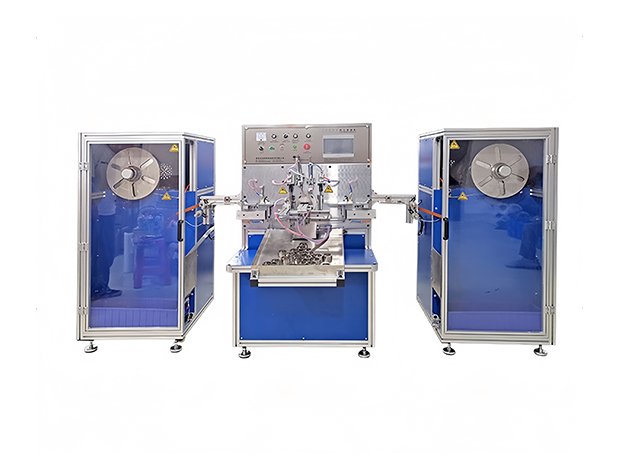

SAW150-50 Nanocrystalline Core Winding Machine machine is specially designed for winding toroidal cores made from amorphous ribbon or nanocrystalline ribbon. It can wind amorphous cores or nanocrystalline cores in high speed, compared with manual winding, which can significantly lower the running cost and increase the production capacity.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
SAW150-50 Nanocrystalline Core Winding Machine machine is specially designed for winding toroidal cores made from amorphous ribbon or nanocrystalline ribbon. It can wind amorphous cores or nanocrystalline cores in high speed, compared with manual winding, which can significantly lower the running cost and increase the production capacity.
Main Features:
- Auto feeding, auto winding, auto cutting, auto welding and auto releasing with high speed and efficiency.
- Ribbon feeding tension is adjustable to ensure the tightness of cores.
- PLC control servo motor driving, stable and high precision.
- HMI operation, simple and convenient
- Production speed can be set and adjusted.
- When error or out of material, automatically alarm.
Technical Parameters:
| Model | SAW40–15 | SAW80-30 | SAW150-50 |
| Shape | Toroidal Core | ||
| Mandrel Diameter | Ø8-Ø30mm | Ø25- Ø60mm | Ø40- Ø100mm |
| Core ID (Min) | Ø9mm | Ø26 | Ø41 |
| Core OD(Max) | Ø40mm | Ø80mm | Ø150mm |
| Material Width | 3-15mm | 15-30mm | 15-50mm |
| Material Thickness | 0.02-0.035mm | 0.02-0.035mm | 0.02-0.035mm |
| Accuracy | < 0.1mm | < 0.1mm | < 0.1mm |
| Voltage | 220VAC, 50/60Hz | ||
| PLC | Panasonic | ||
| Servo Motor | 1 | ||
| Air Pressure | 5kgf/cm² | ||
| Power | 0.6KW | 1.2KW | 3KW |
| Machine Size (LxWxH) | 2300x1250x1300mm | 1700x1000x1500mm | 3200x1300x1600mm |
| Machine Weight | 150KG | 200KG | 300KG |
| Language | Chinese/English | ||
